Enabling utilities to achieve 100% remote read-rates!
Innovating Reliable Smart Meter Connectivity Since 2004
Enabling utilities to achieve 100% remote read-rates!
About Us/Our Technology
RF Savvy Technologies is a Radio Frequency (RF) consultancy with Intellectual Property (IP) licensing as the primary business model.
We provide technical consultant services for wireless communications and the radio frequency industry.
Our IP portfolio is focused on improving ANSI and IEC Smart Meter Connectivity including under the glass antennas & external antenna isolator/RF Coupler featuring:
- Ultra-low insertion loss (<1dB)
- High isolation voltage (>12KV)
- Broadband operation (400MHz-2.7GHz)
- Cellular CAT M1/CAT 4 LTE
- Wi-Fi/Bluetooth 2.4GHz Mesh
- Satcoms: Iridium and GPS/GNSS

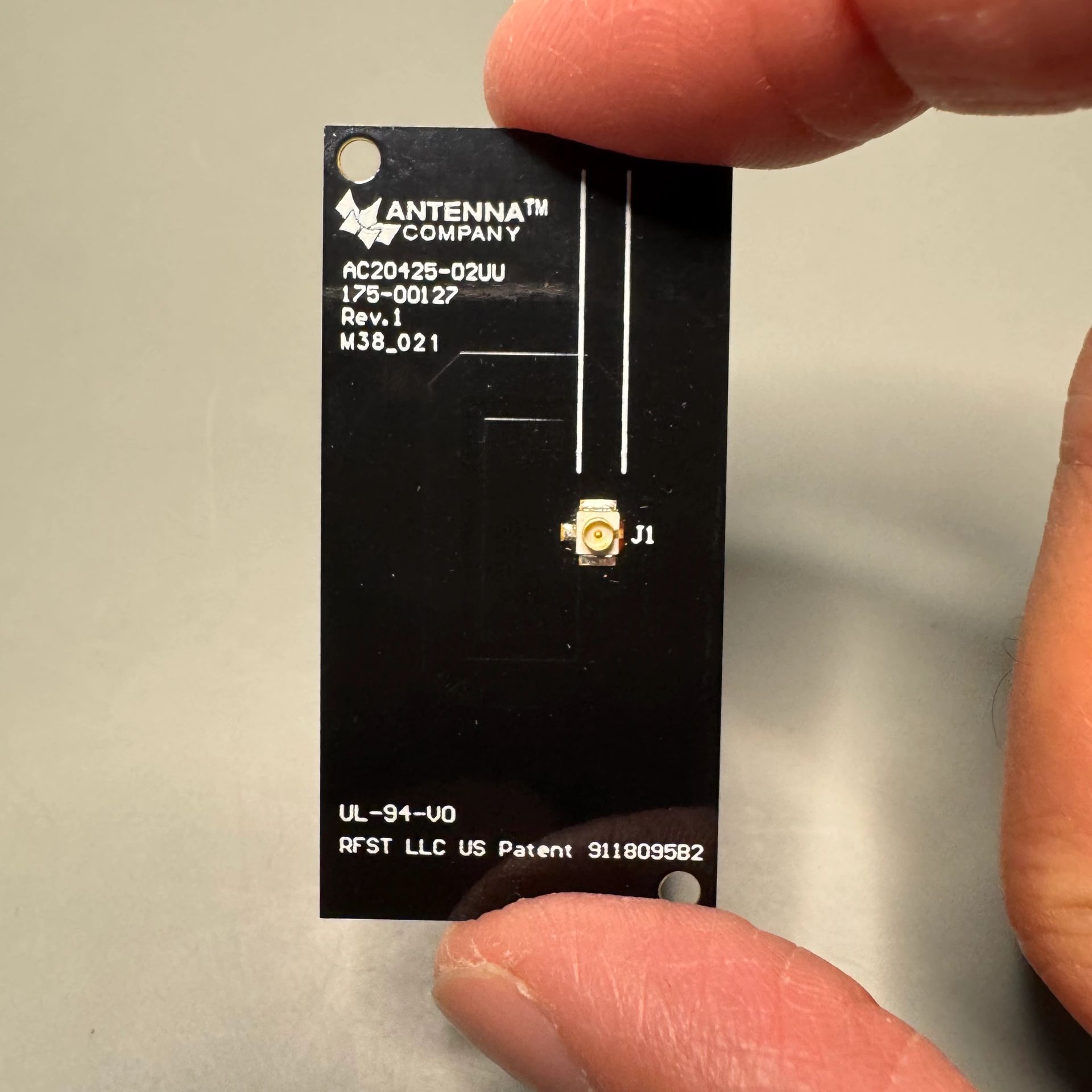

12KV RF Coupler/Antenna Isolator AC20425-02UU
Freq. 698MHz-2.7GHz | Size. 25.2mmx50.1mmx0.381mm | U.Fl
Available now from The Antenna Company
(US Patent 9,118,095 B2)

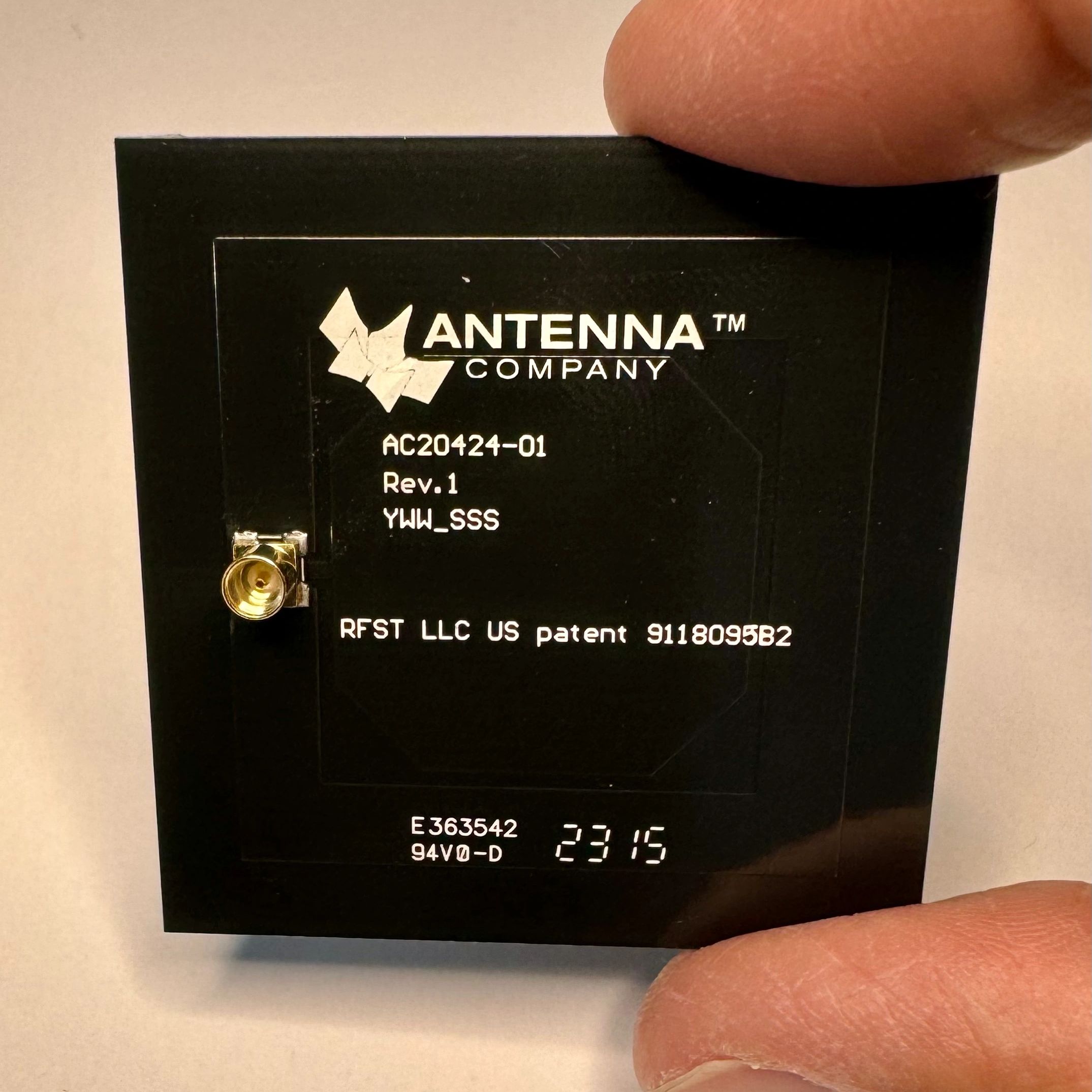

10KV RF Coupler/Antenna Isolator AC20424-01MM
Freq.400MHz-2.45GHz | Size. 45mmx45mmx0.8mm | MMCX
Available now from The Antenna Company
(US Patent 9,118,095 B2)

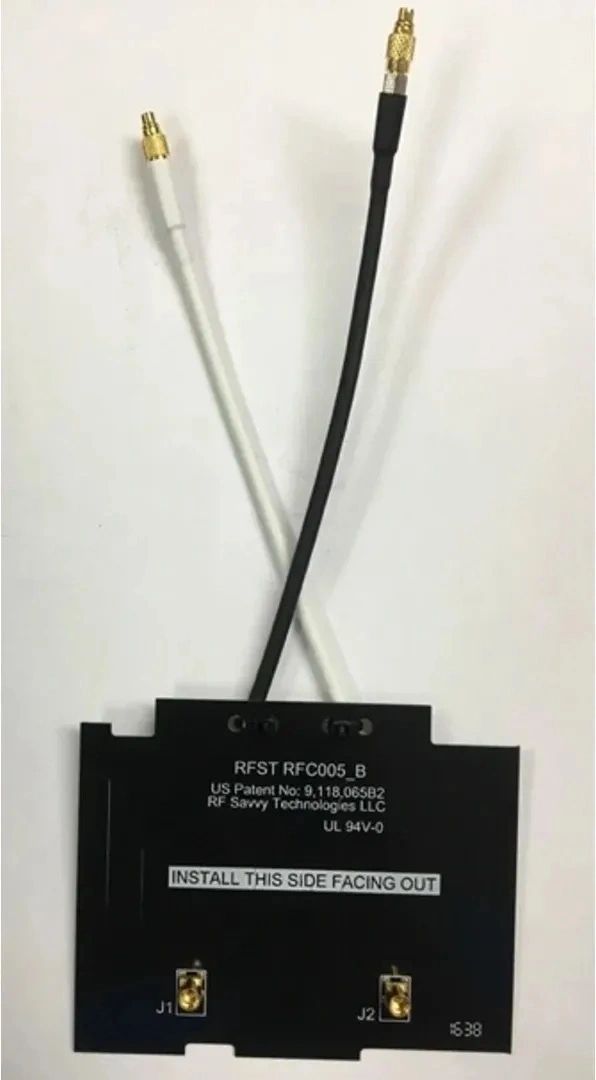

10KV kV2C Dual Ch RF Coupler/Antenna Isolator AMC RFCRFS005B
Freq.400MHz-2.45GHz | Size. 56mmx70mmx0.8mm | MMCX
Available now from Alpha Micro Components
(US Patent 9,118,095 B2)
